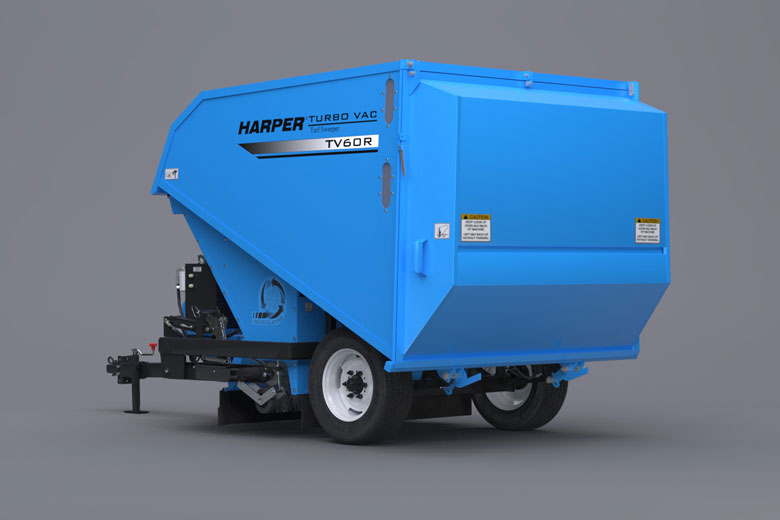

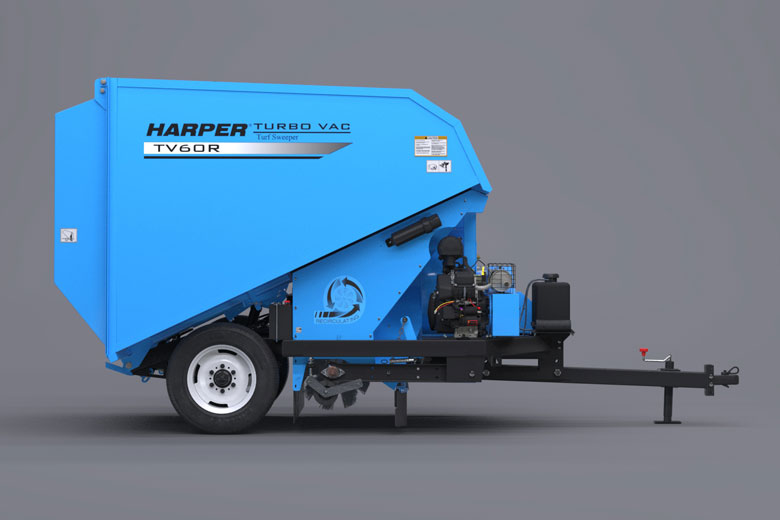

TV60 RE

Vac/Sweeper by Harper Turf

Designed for large area debris removal, the TV60 RE is the perfect solution for picking up grass, leaves, trash and thatch. The unique Recirculating Air System minimizes dust for a clean sweeping environment. The 7 large hopper and wireless remote means less time emptying without ever leaving the driver’s seat. The wide sweeper head follows terrain to maintain a continuous and even coverage across the entire 60 inch width. Clean, quiet and efficient, the TV60 RE is a polished ride from the first pass to the last.

Find a Dealer
TV60 RE

Features

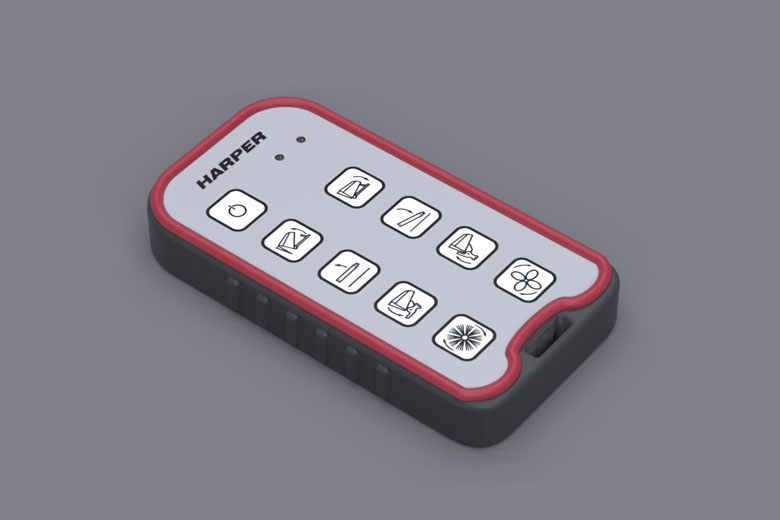

TV60RE wireless remote control

Wireless Remote Control

The TV60 RE wireless remote makes it quicker and easier to adjust throttle, pick up, and debris dumping without leaving your seat.

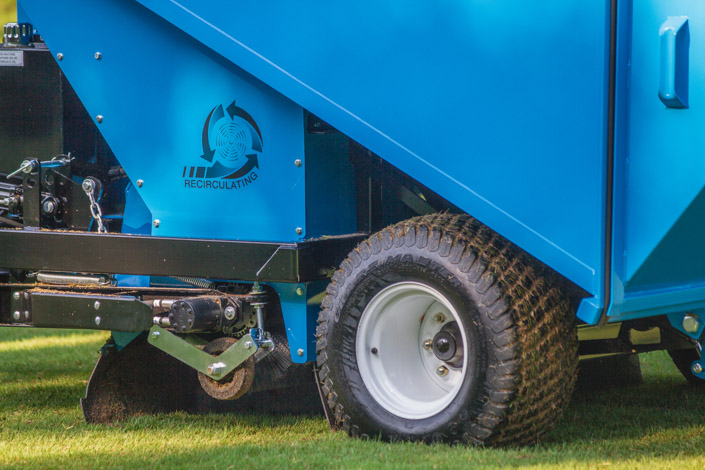

TV60RE recirculating air technology

Recirculating Air Technology

The only turf sweeper series with the patented Recirculating Air System that keeps dust and flying debris to a minimum.

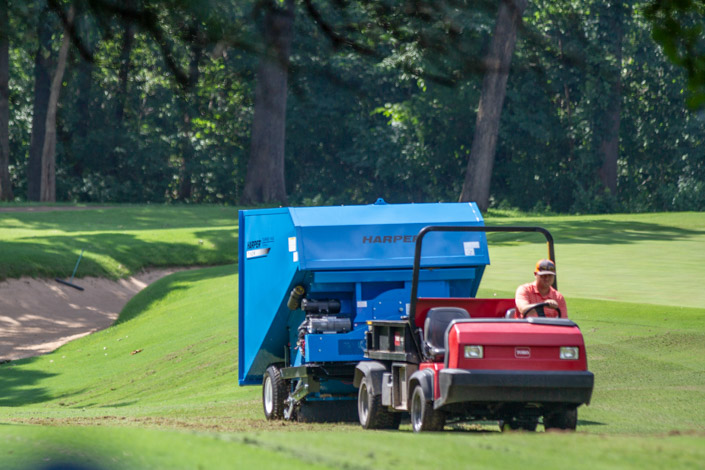

TV60RE towing capacity

Towing Capacity

Powered by a 23.5HP gas engine, this tow-behind vacuum is pulled by a tractor of large utility vehicle.

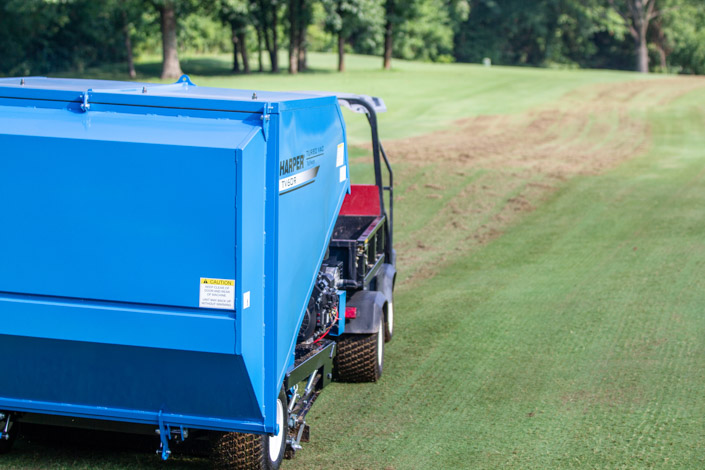

TV60RE large hopper

Large Hopper

The capacity to hold 7 cubic yards of debris, plus it can be emptied right from the seat of your tractor.

Options

Optional brush and rubber finger rotor

Versatile Applications

Interchangeable rotor products that create solutions for your finished landscape needs.
Brush Rotor
This bristle brush is ideal for grooming turf, clearing pathways, and moving top dressing.
Rubber Finger Rotor
The fingers tilt downward so that they hit the surface at an angle, clearing debris on the first pass.

Optional curb brush

Curb Brush

Solves the problem of removing gravel and rocks from edging on streets or paths.

Spec Table

TV60RE
Safety Features Safety latches on all cylinders for service functions, minimal dust generated and quiet operation. Engine automatically returns to idle while dumping.
Blower Drive Dual power-band belt driven with electric clutch
Blower Fan 25" diameter abrasion resistant steel with replaceable machined UHMW, poly liner and 1.5" shaft w/self-aligned bearings supporting both ends
Blower Discharge Easy access to blower for liner inspection and replacement
Engine 23.5 HP Kohler gas engine
Hydraulics Belt driven from engine
Hydraulic Oil Crown AW46; ISO 46 Hydraulic Oil
Main Frame 11 gauge welded and reinforced steel tubing
Bearings Greasable bearings and sealed bearings
Hopper Capacity 7 cubic yards
Wheels / Tires 6-bolt wheels and (2) 26x12 turf tires
Controls Wireless remote control from operator seat
Rotors 17" dia. x 60" with adjustable skids

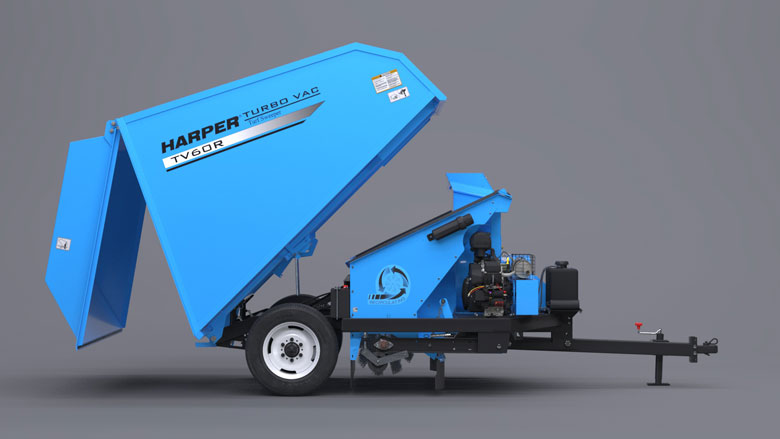

Discharge Hydraulic dump with hydraulic power latches
Tongue and Hitch Adjustable height tongue with ball hitch
Paint Durable 2-part polyurethane
Dimensions 164" L x 85" W x 85" H
Weight 2,300 lbs. (1,043 kg)
Options Brush rotor, rubber finger rotor, curb brush and adjustable gooseneck hitch
