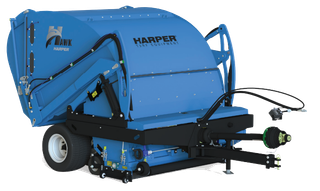

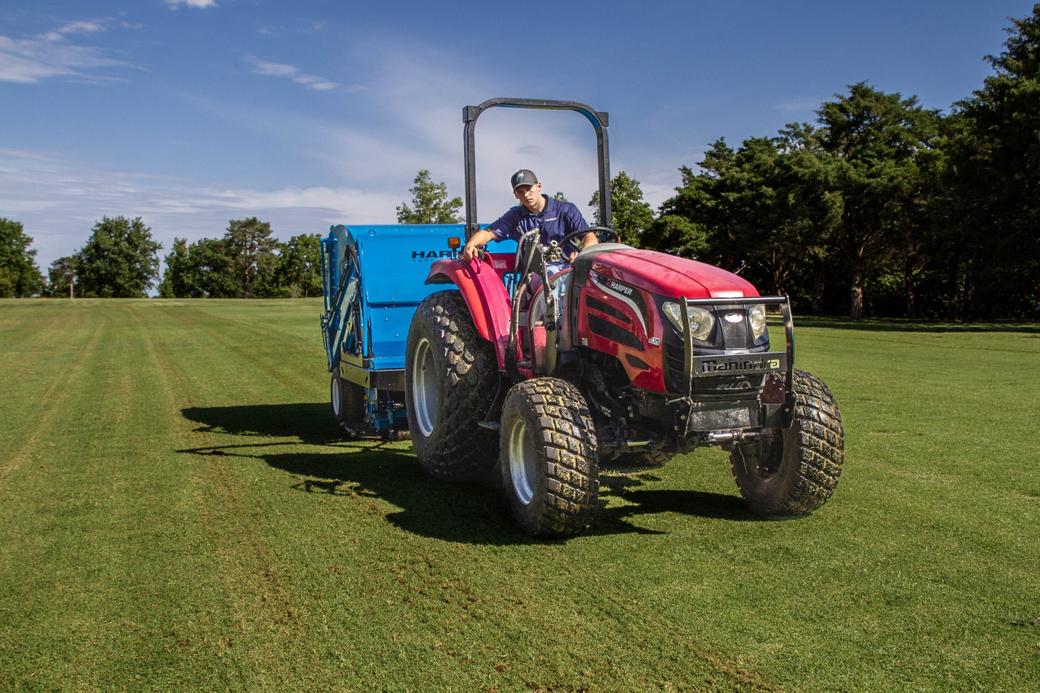

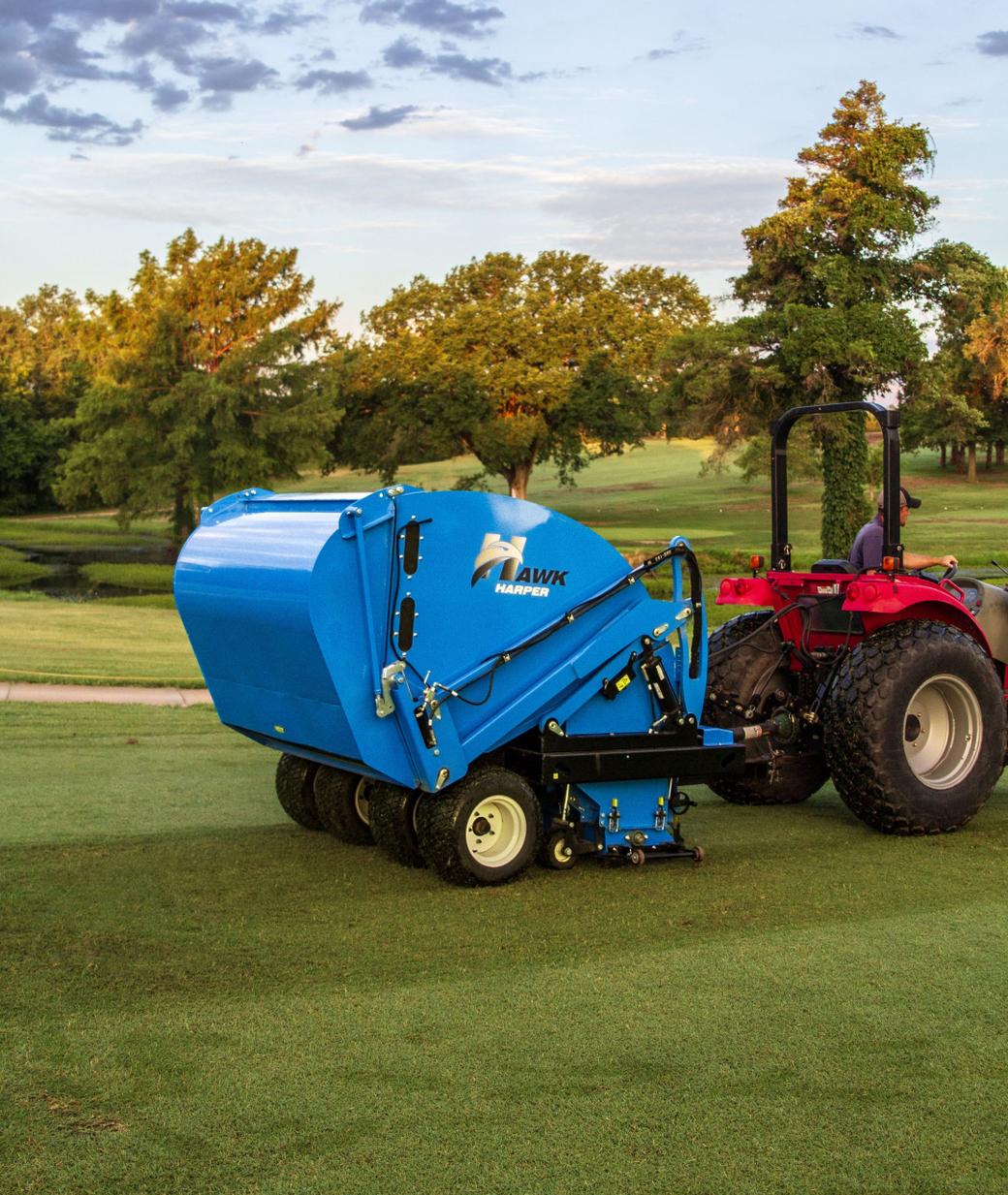

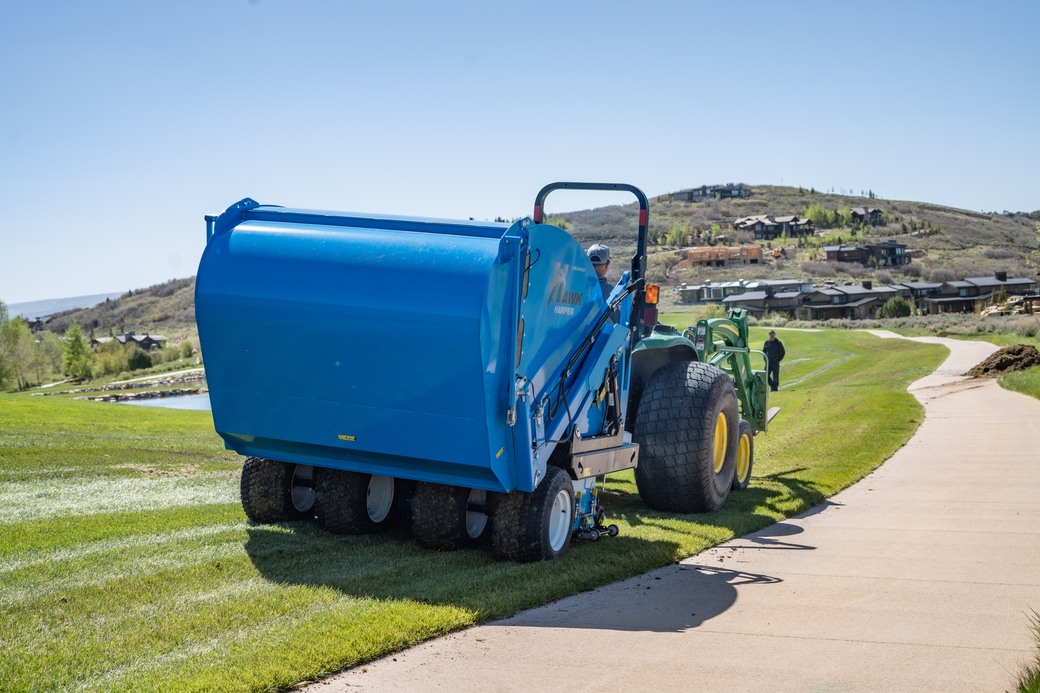

PULL-TYPE SWEEPER

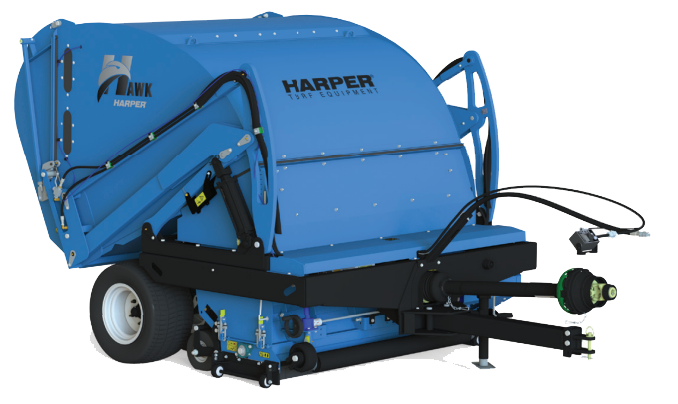

PTO HAWK
Optional Attachments

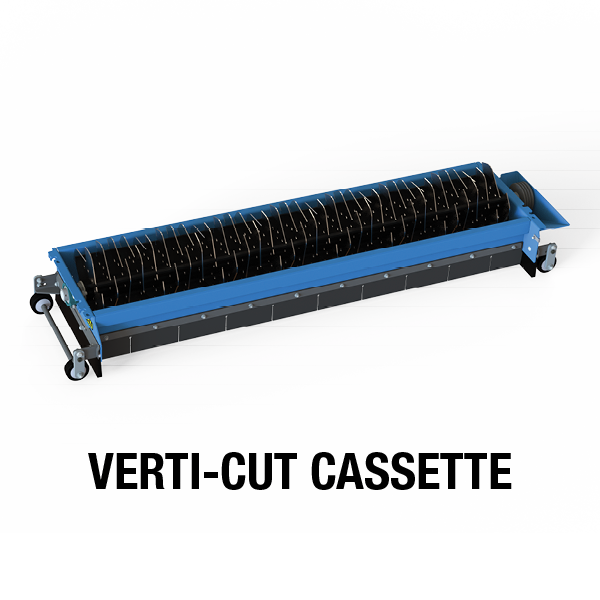

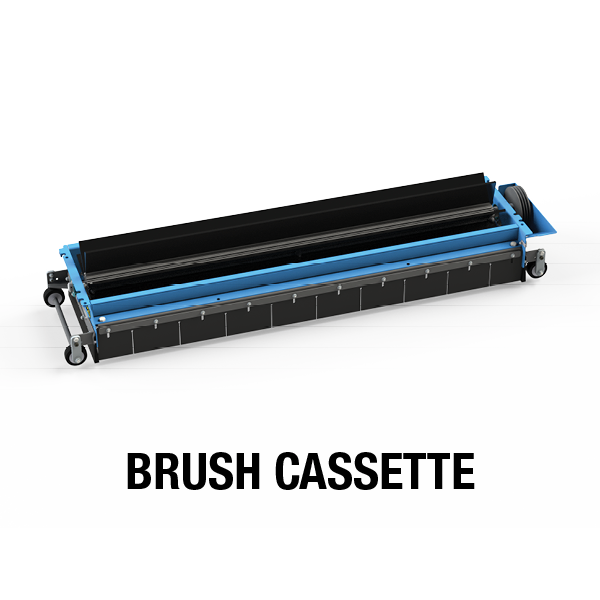

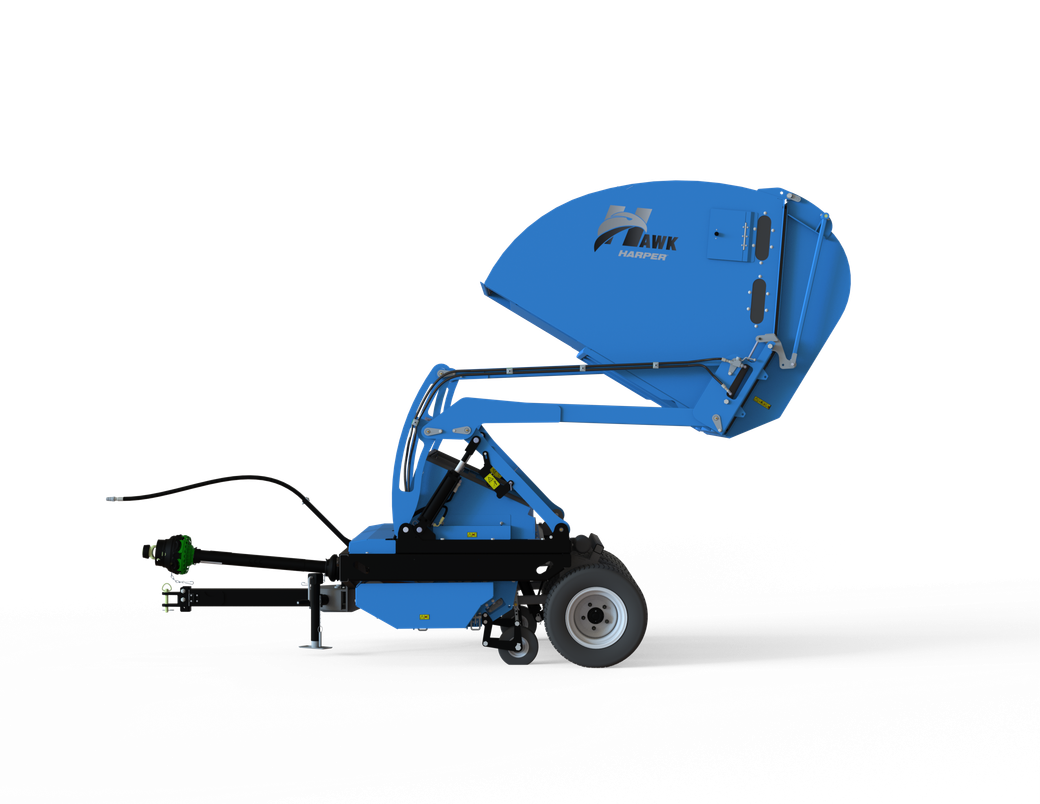

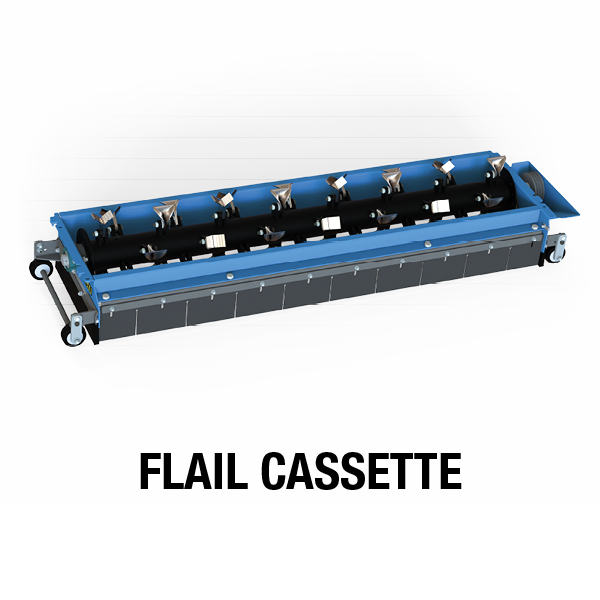

Brush rotor Flail rotor 2” spacing carbide verticutter 1.5” spacing carbide verticutter Standard anti-scalp wheel kit Front roller kit
Features
PTO-powered
Quick-change rotors
Low ground pressure
Recirculating air
Spec Table
| PTO Hawk | |
|---|---|
| Power | Tractor PTO - 540 RPM - 40 HP tractor required |
| Configuration | Towed, 4 rear wheel, with a rear mounted, high-lift, debris hopper with patented recirculating air technology |
| Paddle | 18 in (45 cm) diameter with 4 removable paddles contained inside housing |
| Main Frame | Welded and formed steel frame |
| Tires & Wheels | 24x12-12 Litefoot 6ply |

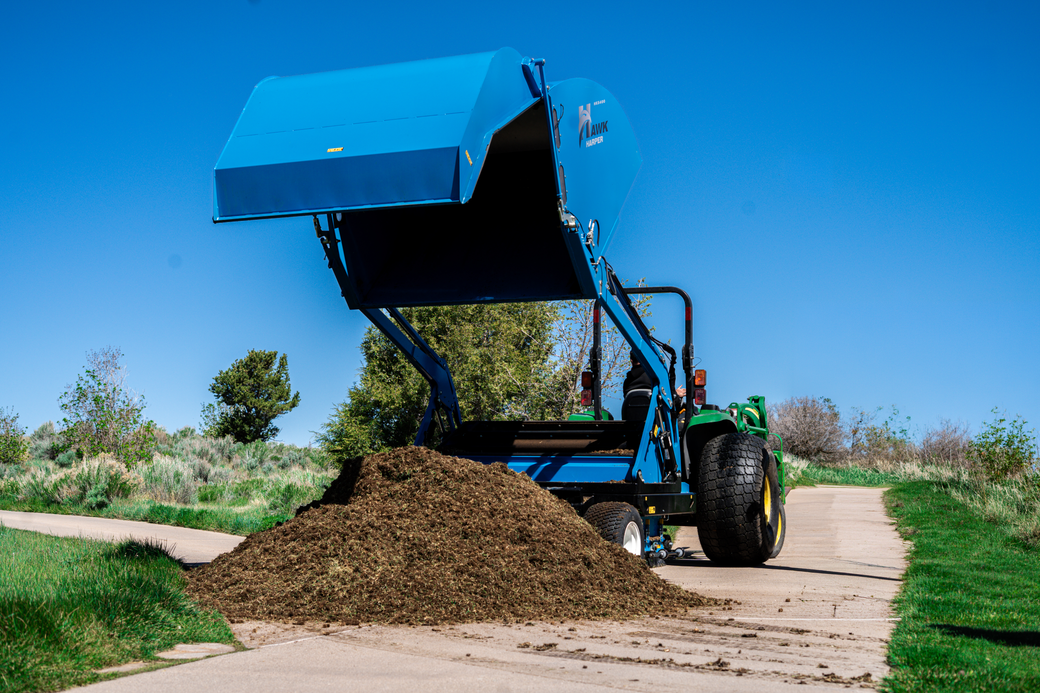

| Hopper Capacity | 3.36 cu yards (2.57 cu m), rises 71 in (180 cm) above the ground to dump into vehicle or container |
| Electrical | 12-volt |
| Dimensions | Length - 143 in (363 cm), height - 75 in (191 cm), width - 76 in (193 cm); weight - 2,635 lbs (1,195 kg) max |
| Sweeper | 60 in (152 cm) w x 12 in (30 cm) diameter sweeping rotor contained in a floating deck housing with rear mounted gauge wheels and front mounted anti-scalp wheels; rises to transport position and lowers to operating position |
| Controls | Hydraulic lift/lower and hydraulic open/close of debris hopper Hydraulic raise/lower of sweeping mechanism head assembly; mechanical power of sweeper and paddle |
| Hydraulics | Tractor operated hydraulics, 3 GPM minimum flow |
