HARPER TURF

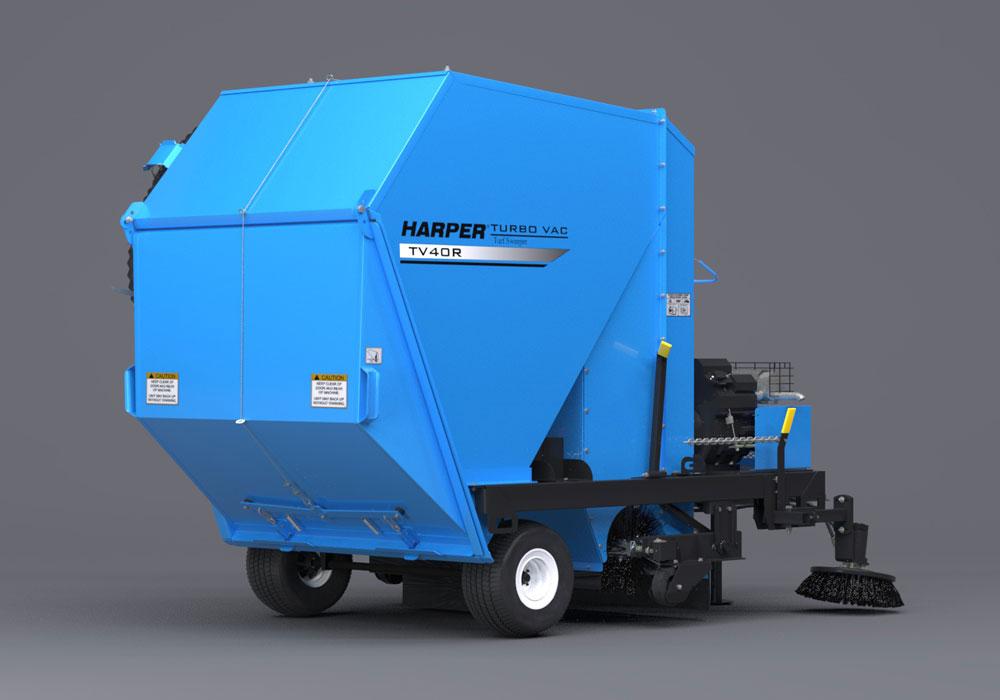

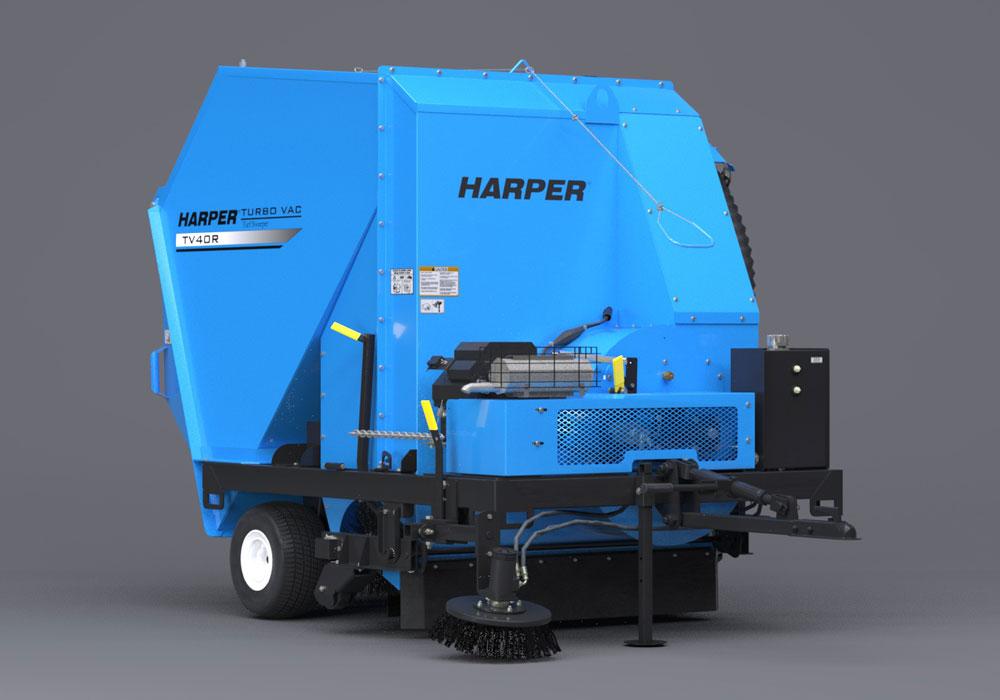

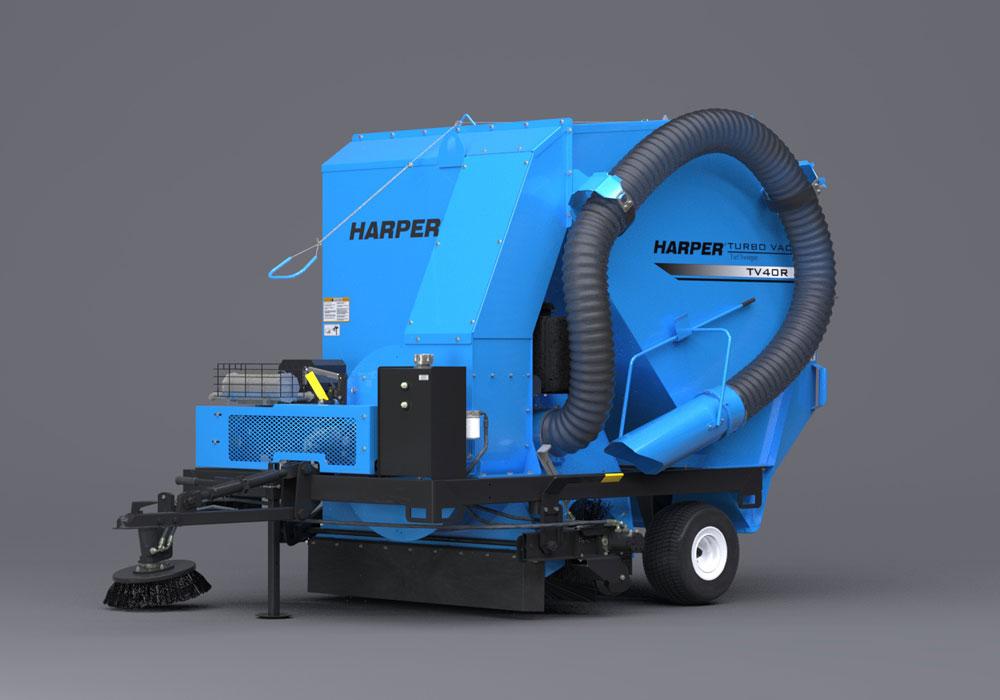

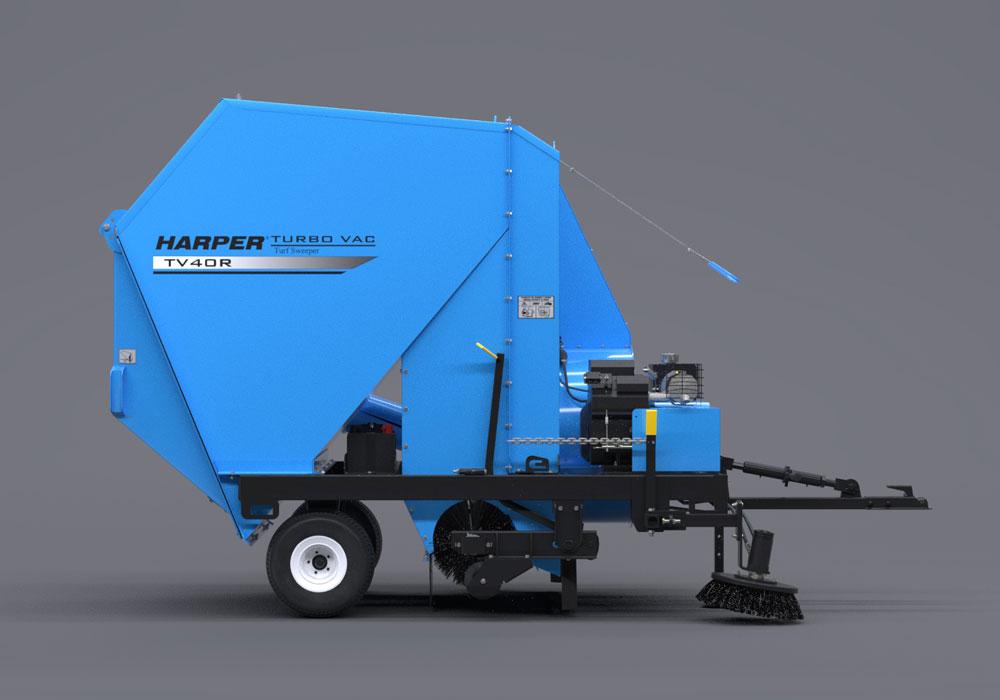

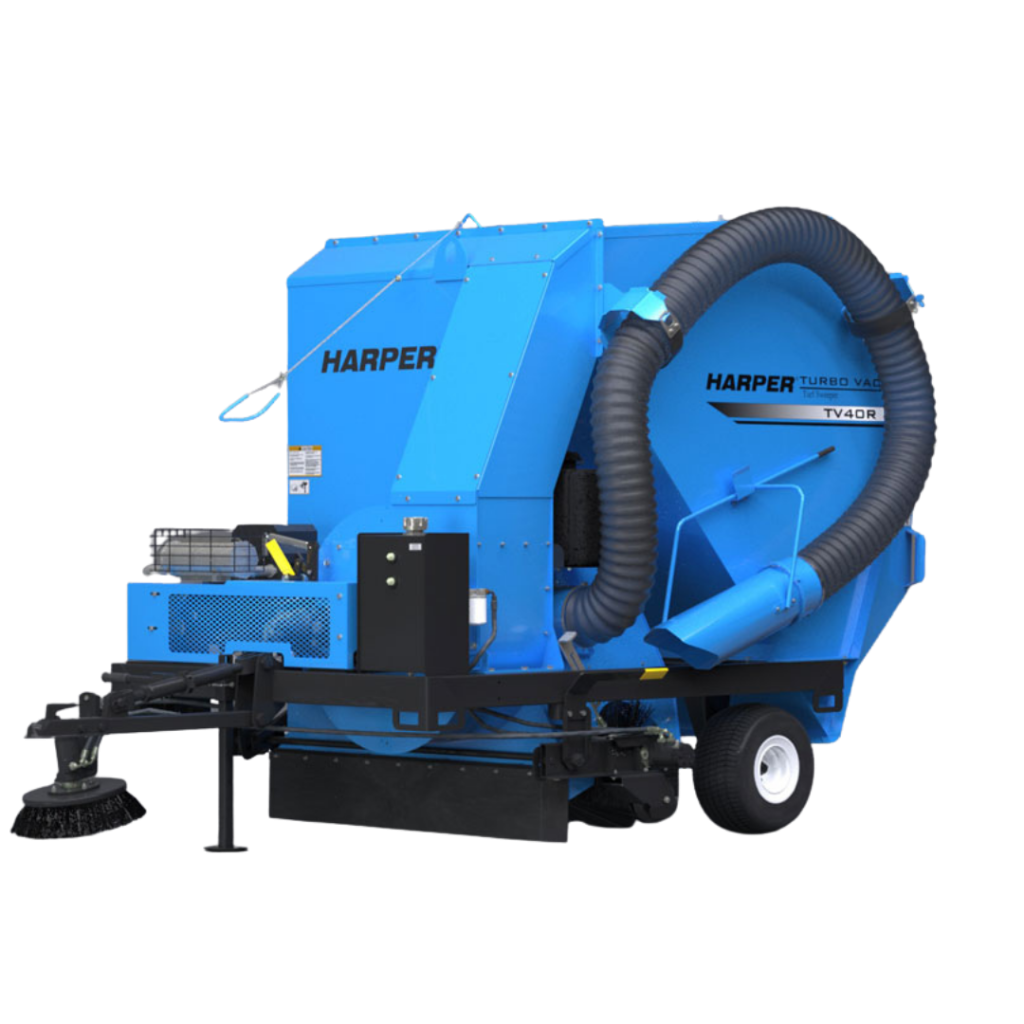

TV40
The Most Versatile Vac on the Market

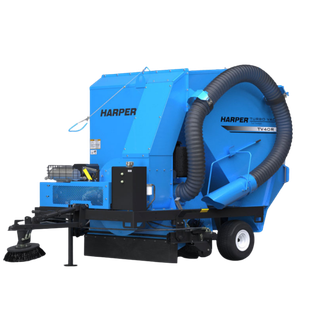

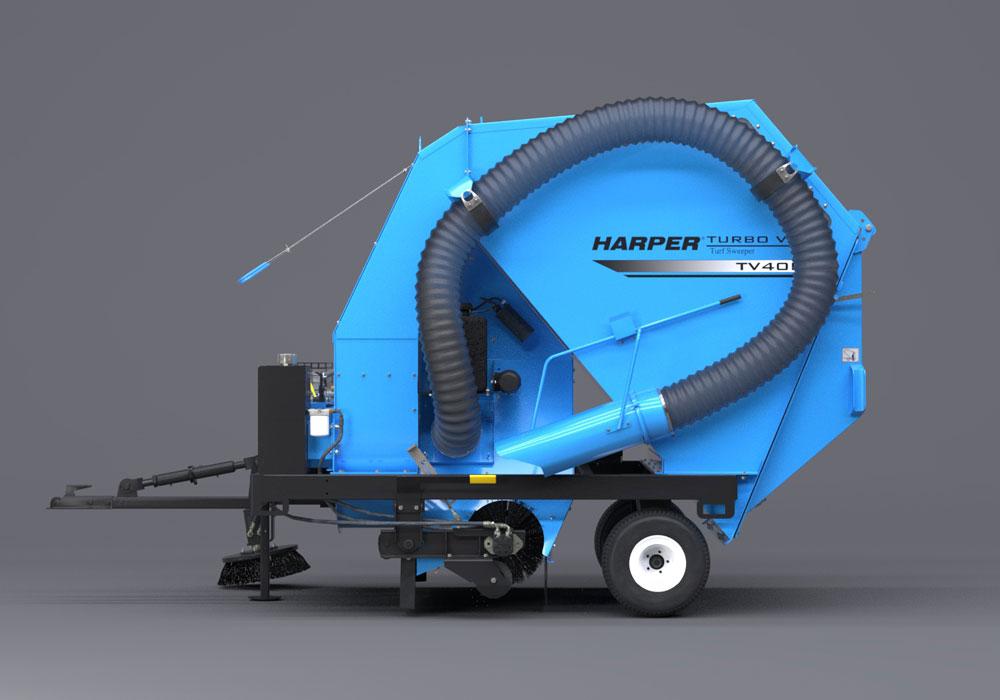

Innovative turf rotors designed to save time and money for thatch removal, seeding and more on a variety of surfaces. Versatile Applications Swap rotors to suit the job, from raking up grass clippings to picking up pesky pine needles. Brush Rotor Best used for clearing sidewalks and parking lots. Rubber Finger Rotor Superior performance on hard to pick up materials including pine cones, small limbs, and brush. Curb Brush Ideal for cleaning up all kinds of rocks, sand, gravel, mulch, dirt and litter on any flat outdoor surface. Remote Hose Attachment Extend your reach with the 8″ wide x 12.5′ long hose kit for debris clean up in tight areas.
Features
Recirculating Air Technology

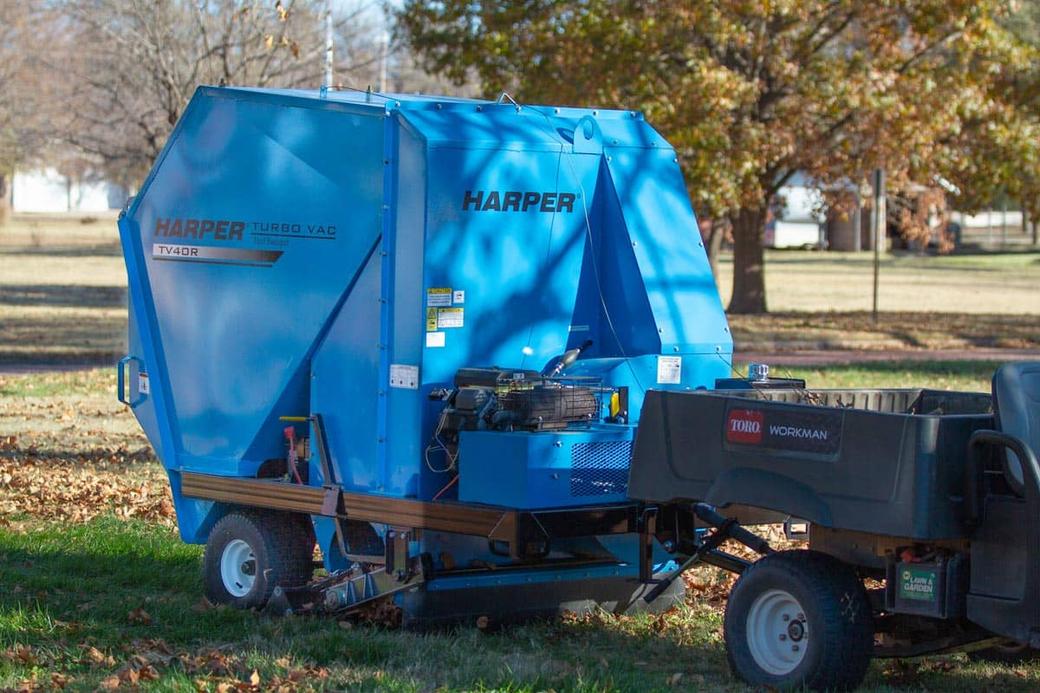

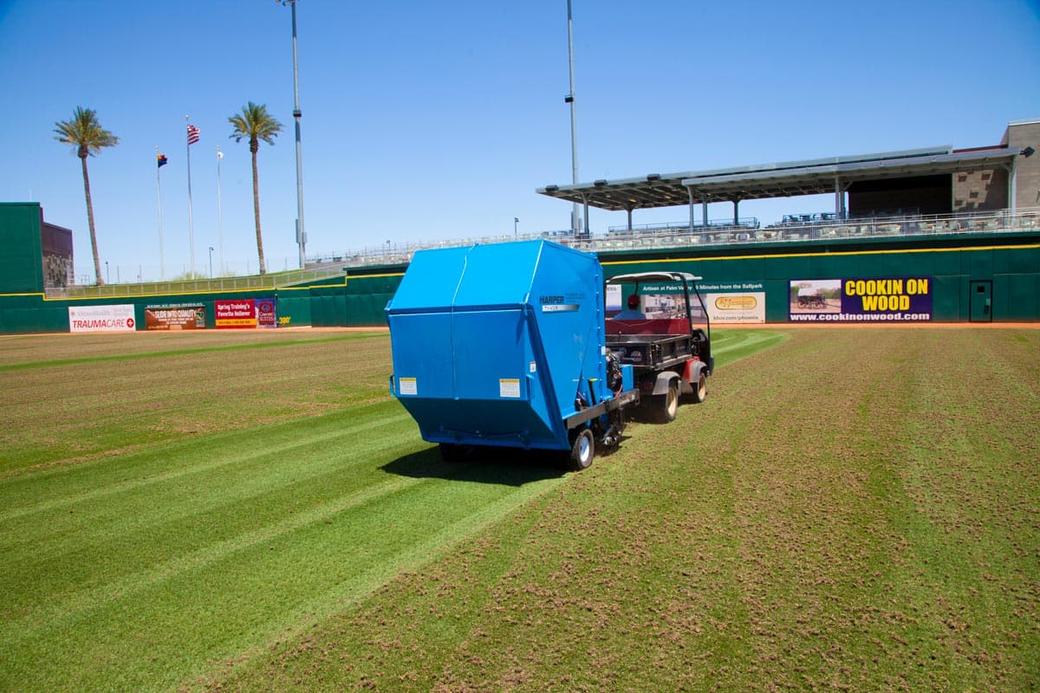

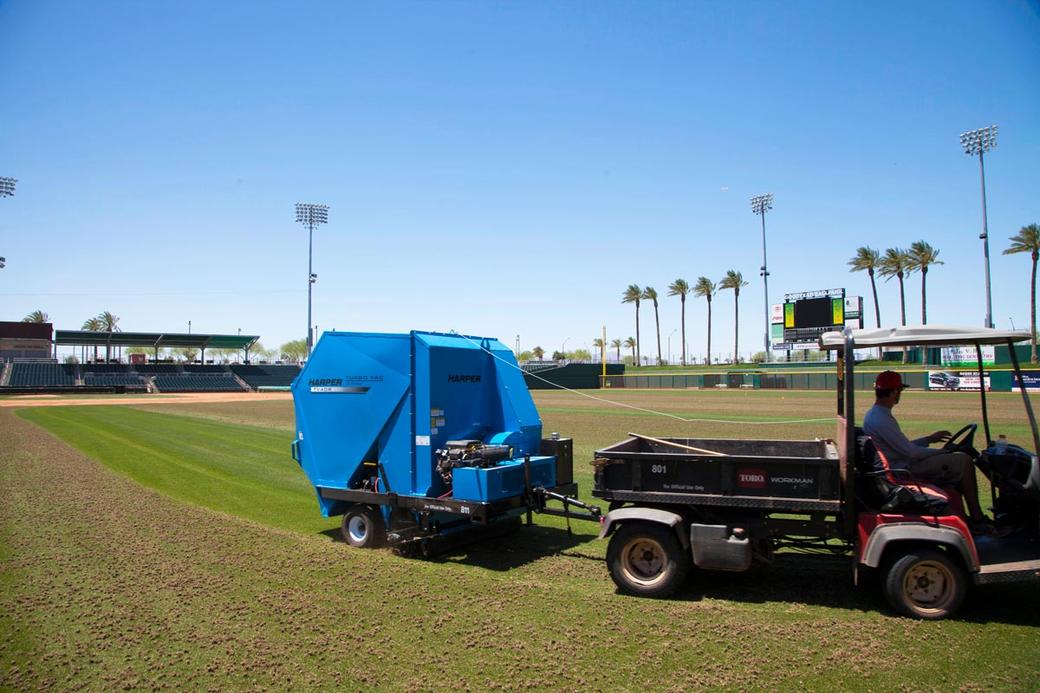

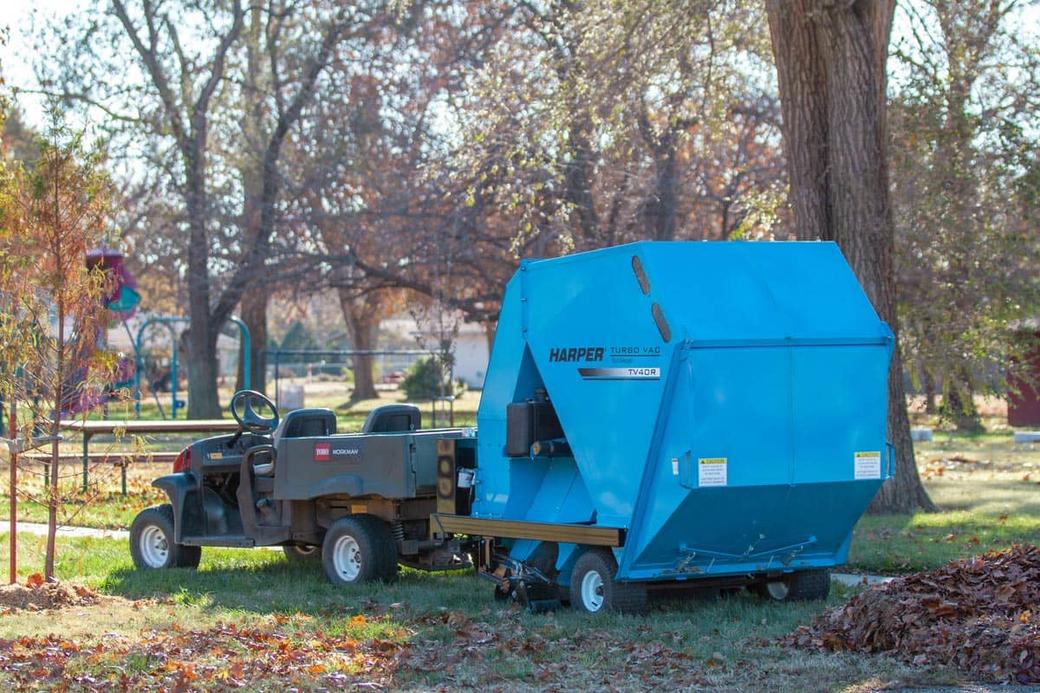

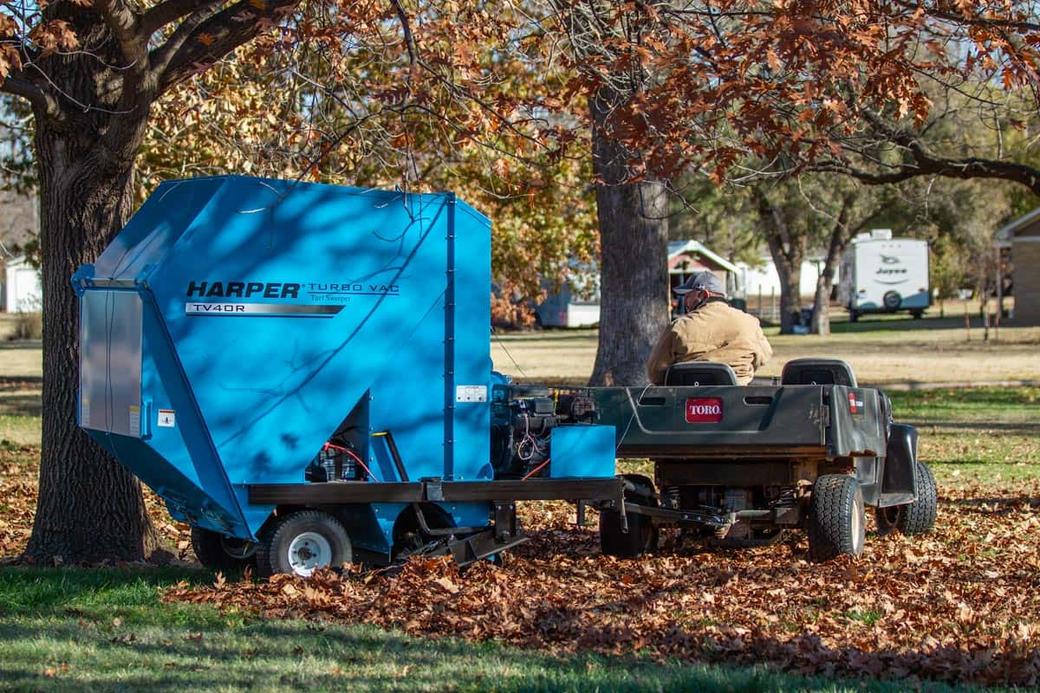

Light Towing Friendly
4 Cu. Yd. Hopper
Spec Table
| TV40 | |
|---|---|
| Safety Features | Minimal dust generated, quiet operation - 85dB, 90dB (CARB) |
| Blower Drive | Double v-belt drive with electric clutch |
| Blower Fan | 25 in diameter abrasion resistant steel with replaceable poly-liner and 1.5 in shaft with self-aligned bearings |
| Engine | (TV40 RE) 20 HP Kohler™ gas engine (TV40 CARB) 26.5 HP Kohler™ EFI gas |
| Hydraulics | Belt-driven hydraulic pump |
| Hydraulic Oil | Crown AW46; ISO 46 Hydraulic Oil |
| Construction | 11 gauge welded and reinforced steel tubing |
| Bearings | Greasable, sealed bearings |
| Hopper Capacity | 4 cu yards |
| Wheels & Tires | 4-bolt wheels, (2) 18.5x9.5 tires |
| Controls | Engine, blower and brush controls on machine |
| Rotors | 13.5 in diameter x 52 in with adjustable gauge wheels |
| Discharge | Mechanical trip and latch system |
| Tongue & Hitch | Adjustable tongue functions as pick-up height controller |
| Paint | Durable 2-part polyurethane |
| Dimensions | Length - 135 in (343 cm), height - 82 in (208 cm), width - 64 in (163 cm) |
| OPTIONS | Brush rotor, rubber finger rotor, curb brush and 8" x 12.5' remote hose attachment |
| Weight | 1,600 lbs |
