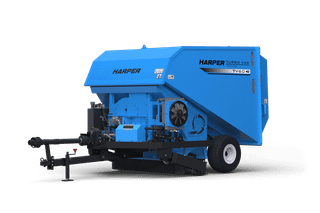

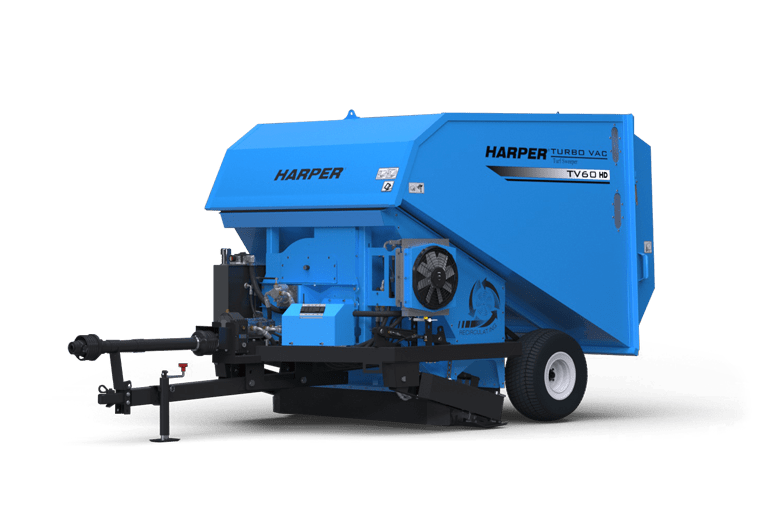

TV60RHD
AS SEEN ON TV

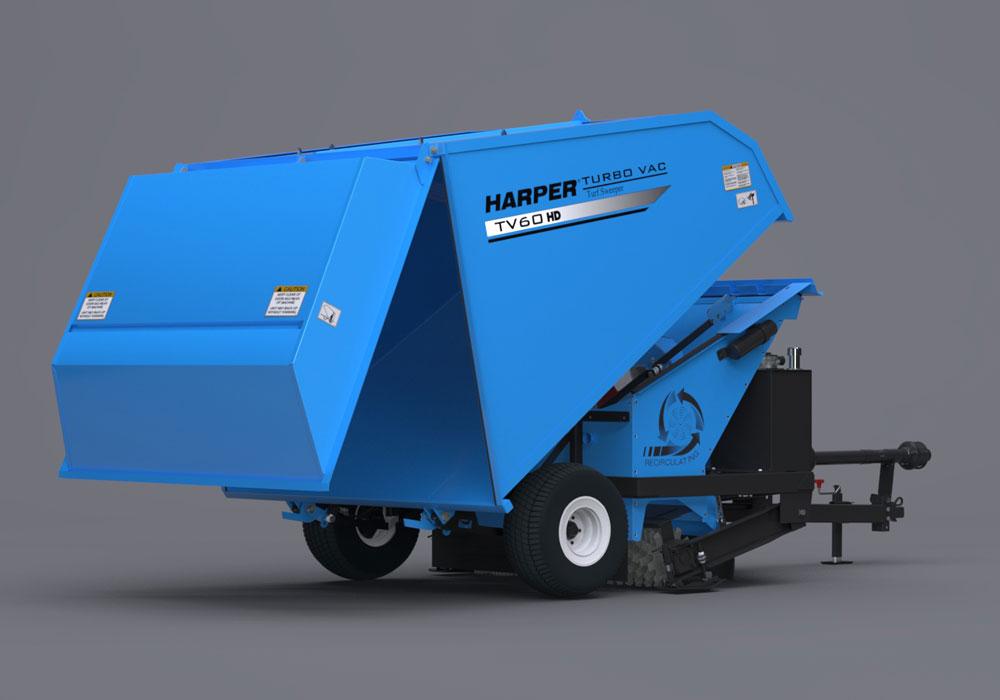

Versatile Application
nnovative turf rotors designed to save time and money for thatch removal, seeding and more on a variety of surfaces. Verti-cut Rotor Ideal for dense turf varieties of cool and warm season turf grasses to improve growing conditions. Brush Rotor Remove sand, grass clippings, thatch and trash, leaving behind a perfectly groomed appearance. Rubber Finger Rotor Overlapping finger reels sweep the surface clean, removing leaves and debris from fine turf areas.
Features

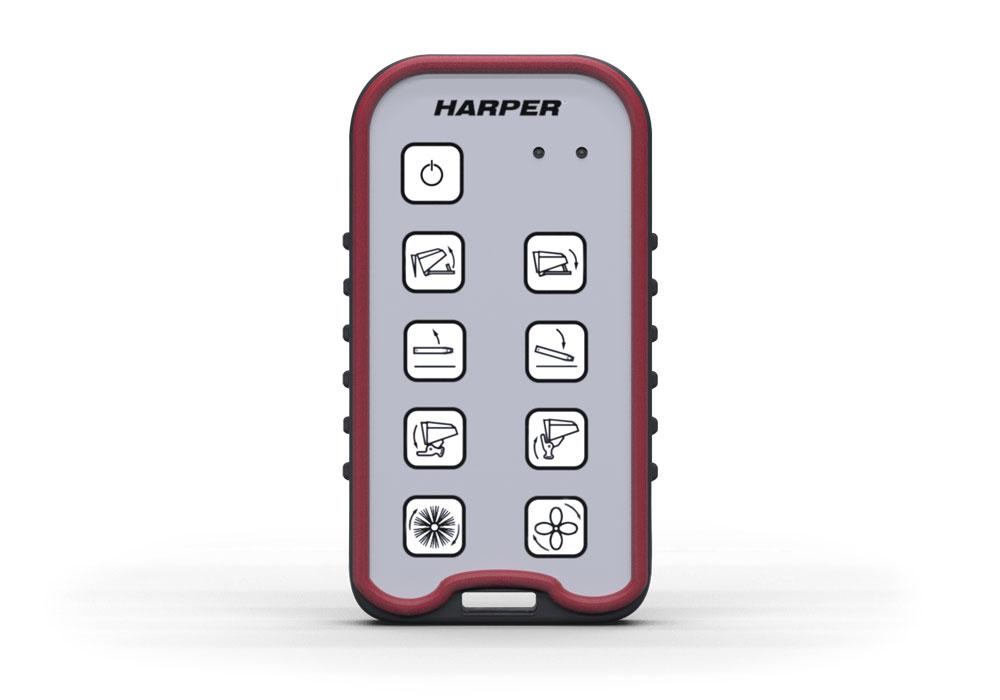

Wireless Remote Control

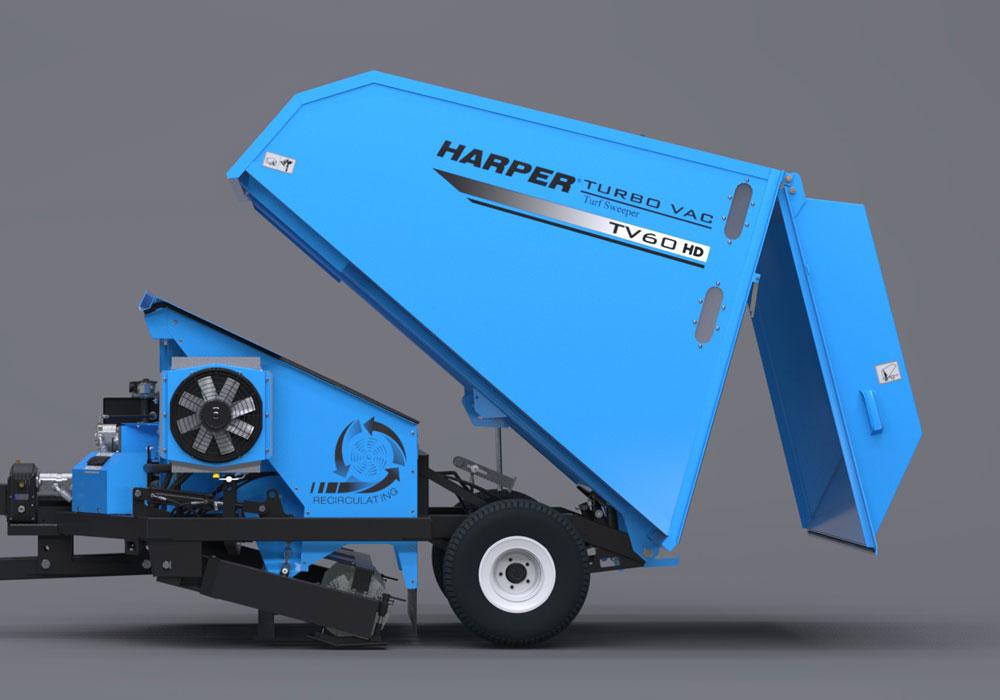

Hydraulic Dump System

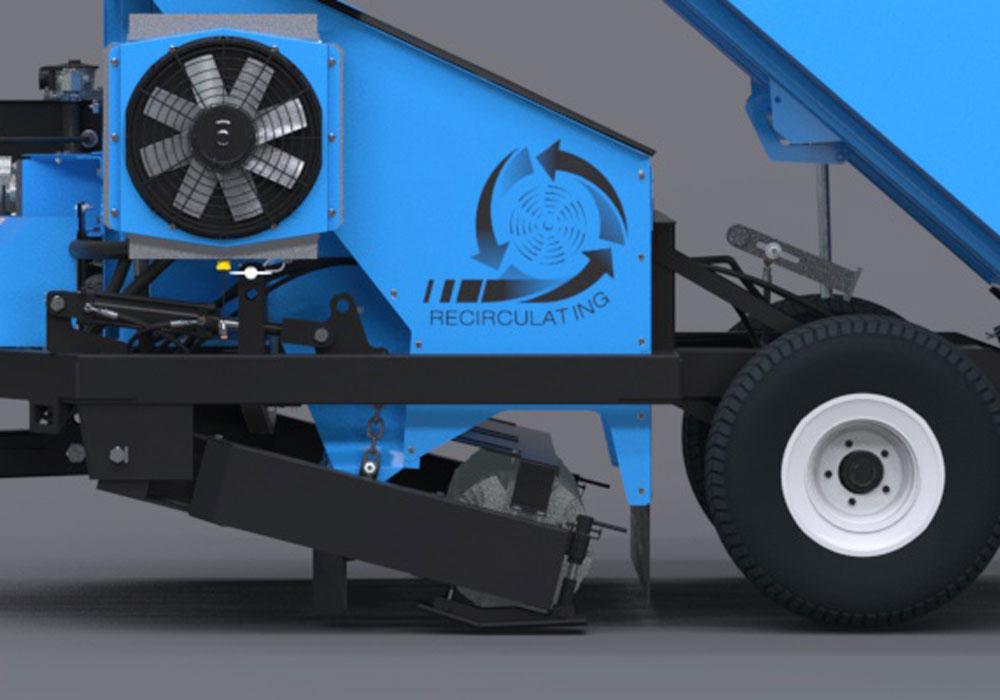

25″ Blower Fan
7 Cubic Yard Hopper
Spec Table
| TV60RHD | |
|---|---|
| Safety Features | Safety latches on all cylinders for service functions, minimal dust generated and quiet operation. |
| Blower Drive | Hydraulic motor powered by gear dump |
| Blower Fan | 25" diameter abrasion resistant steel with replaceable machined UHMW, poly liner and 1.5" shaft w/self-aligned bearings supporting both ends |
| Blower Discharge | Easy access to blower for liner inspection and replacement |

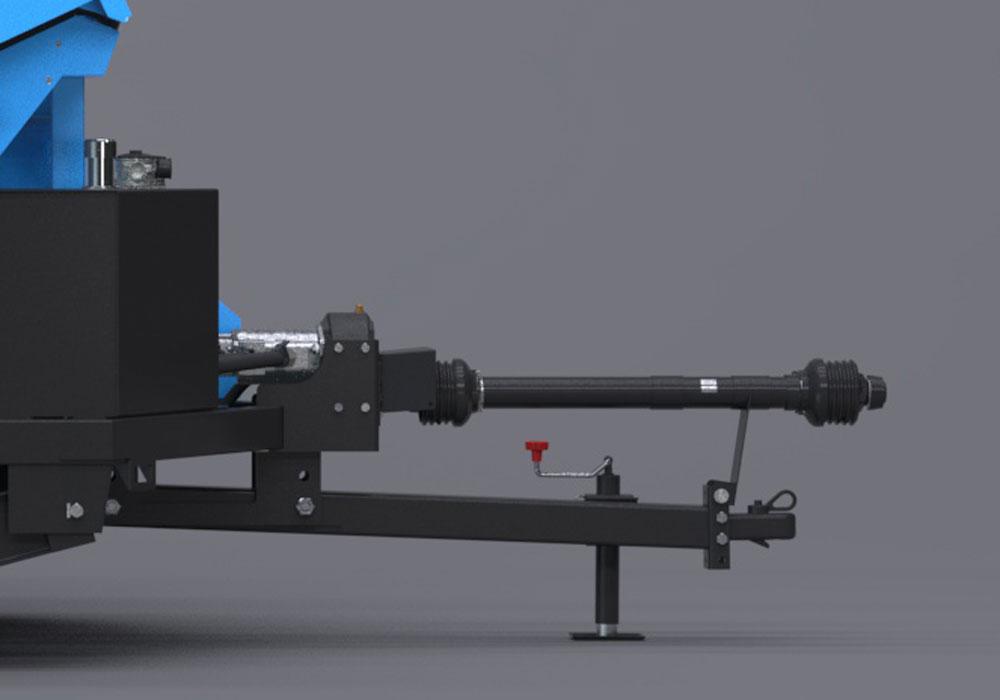

| Engine | None (PTO powered) 40 HP Required |
| Hydraulics | Tractor PTO driven |
| Hydraulic Oil | Crown AW46; ISO 46 Hydraulic Oil |
| Main Frame | 11 gauge welded and reinforced steel tubing |
| Bearings | Greasable bearings and sealed bearings |
| Controls | Wireless remote control from operator seat |
| Dimensions | 164" L x 85" W x 85" H |
| Wheels & Tires | 6-bolt wheels and (2) 26x12 turf tires |
| Rotors | 12" dia. x 60" with adjustable gauge wheels |
| Hopper Capacity | 7 cubic yards |
| Tongue & Hitch | Adjustable height tongue with ball hitch |
| Paint | Durable 2-part polyurethane |
| Weight | 2,250 lbs. (1,021 kg) |
| OPTIONS | Brush rotor, rubber finger rotor, verti-cut with rubber finger rotor, verti-cut with carbide tip blades |
